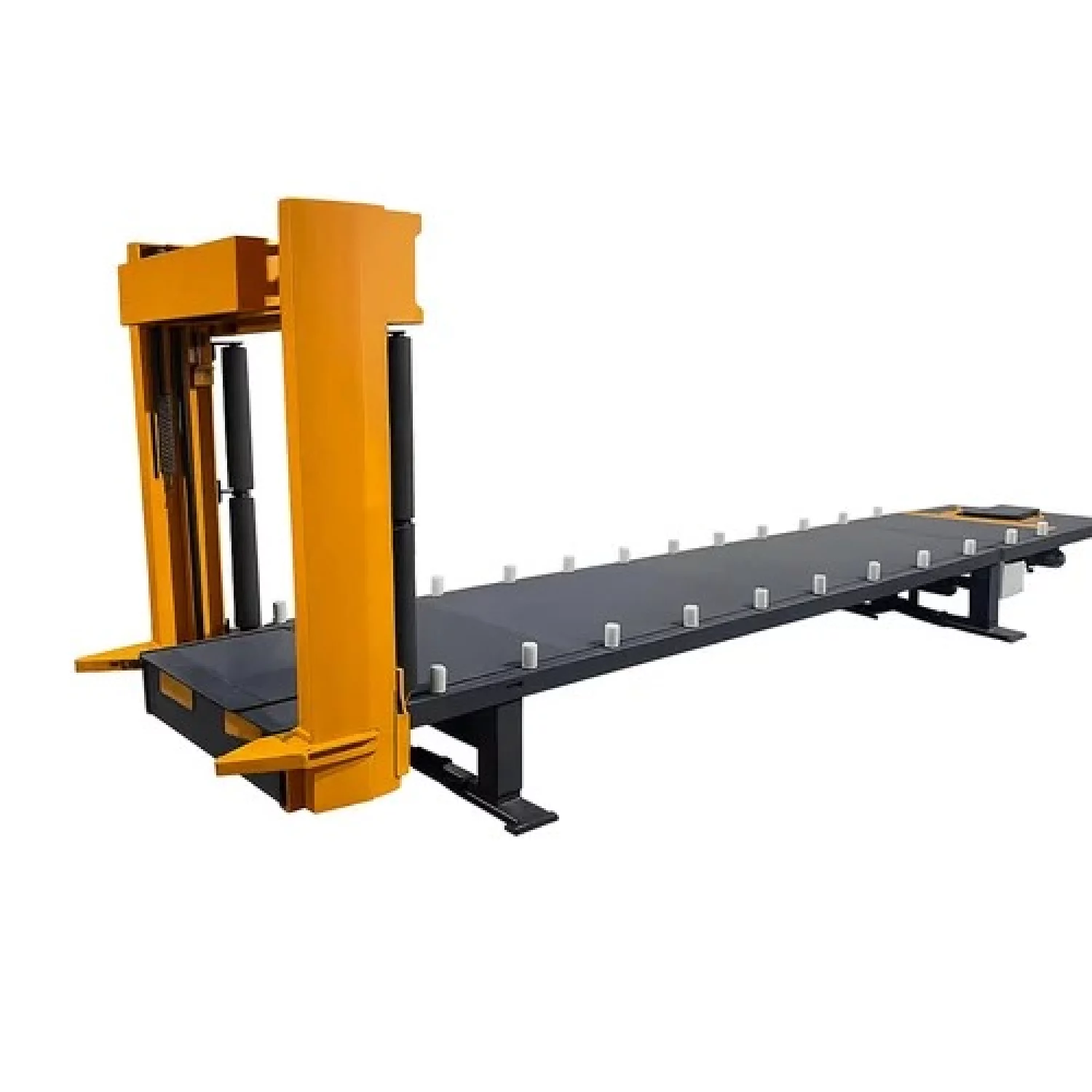

A Container Loading Machine – Plate Type is a highly efficient, heavy-duty loading system designed to transfer bulk goods, cartons, bags, bundles, and palletized materials into shipping containers using a smooth sliding motion. Featuring a robust steel loading plate, this machine delivers uniform pushing action, enabling quick and safe loading into both 20ft and 40ft containers. It significantly reduces manual labor, speeds up the loading process, and ensures consistent performance across diverse material types.
Engineered for industries managing high export volumes, the Plate Type Container Loading Machine improves productivity, minimizes product damage, and ensures maximum container space utilization. Its durable construction, reliable mechanism, and easy operation make it an ideal solution for logistics hubs.
| CLS | AG - 20CP | AG - 40CP | AG - 45CP |
|---|---|---|---|
| Capacity | 20 TON | 30 TON | 30 TON |
| Weight | 10 TON | 16 TON | 17 TON |
| Length | 8000 MM | 14000 MM | 14800 MM |
| Width | 2300 MM | 2300 MM | 2600 MM |
| Height | 1550-1850 MM | 1550-1850 MM | 1550-1850 MM |
| Plate Type | Hard Ox | Hard Ox | Hard Ox |
| Time/Route | 6-8 Min | 8-10 Min | 8-10 Min |
| Roll Path | 6100 MM | 12500 MM | 13600 MM |
| MEPR | 12KW/3PHASE | 20KW/3PHASE | 20KW/3PHASE |
warehouses, manufacturing units, and export-oriented facilities.
Our Plate Type system is designed for maximum durability, precision, and efficiency, making it ideal for large-scale industries and export houses. We offer customizable designs to suit material type, capacity, and workflow requirements.
